Introduction of Pipe Internal Spray Process and Spray Range

A pipe internal lining spray machine, also known as a pipe coating machine, is specialized equipment used for applying protective coatings to the inside walls of pipes. This is crucial for preventing corrosion, improving the flow efficiency of fluids, and extending the lifespan of the pipes.

The machine typically consists of a nozzle assembly that is inserted into the pipe, often via a remote-controlled robot or a cable system. This nozzle is connected to a high-pressure pump that delivers the coating material, which can be epoxy, polyurea, or other protective coatings, depending on the application requirements. The coating is sprayed onto the pipe's inner wall, forming a protective barrier against corrosion, abrasion, and other forms of damage.

Key features of a pipeline internal coating machine include adjustable spray patterns to ensure even application, the ability to handle various viscosity materials, and a robust design that can withstand the harsh conditions often encountered in pipeline maintenance and construction. The machine may also include monitoring systems for precise control over the coating process, ensuring consistency and quality in the finished product.

These machines are essential in extending the life of pipelines, enhancing their performance, and reducing maintenance costs. They are used in new construction projects to apply initial coatings and in rehabilitation projects to renew existing pipelines, ensuring their safe and efficient operation for years to come.

Process of Using a Pipeline Internal Wall Coating Machine:

Preparation of the Pipeline:

Inspection: Prior to coating, the pipeline must be thoroughly inspected for any defects or damage. This ensures that the coating will adhere properly and that any necessary repairs can be made beforehand.

Cleaning: The pipeline is cleaned to remove any debris, rust, or contaminants that could affect the adhesion of the coating. This is typically done using high-pressure water jetting or mechanical cleaning methods.

Setup of the Coating Machine:

Positioning: The machine is positioned at the entry point of the pipeline. It is crucial that the machine is securely set to ensure stability during the coating process.

Calibration: The coating machine is calibrated to ensure the correct thickness and even application of the coating material. This involves setting parameters like the speed of the machine and the flow rate of the coating material.

Application of Coating Material:

Spray Application: The coating material, which could be a polymer, epoxy, or other types of protective coatings, is sprayed onto the internal walls of the pipeline. The machine is designed to navigate the pipeline while applying the coating uniformly.

Curing: Once the coating is applied, it must be allowed to cure. This can be done naturally over time or with the help of heat, depending on the type of coating used.

Inspection and Quality Control:

Post-Coating Inspection: After the coating has cured, the pipeline is inspected again to ensure that the coating has been applied correctly and there are no defects.

Dimensions of a Pipeline Internal Wall Coating Machine:

The dimensions of a pipeline internal wall coating machine can vary significantly based on the size and type of pipeline it is designed to coat.

Spray Range and Pipe Sizes

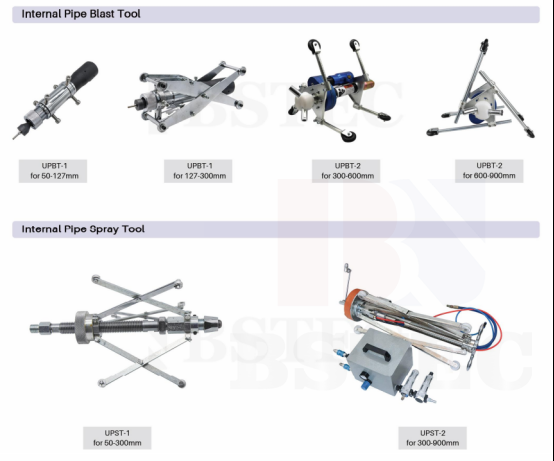

Pipe internal lining spray machines are versatile and can accommodate a wide range of pipe sizes. The typical range can be from small pipes with diameters as small as 50mm (2 inches) to large pipes with diameters up to 2000mm (80 inches) or more. The specific range can vary based on the model of the machine, but most can handle the majority of industrial pipe sizes.

The ability to adjust the nozzle arm length and the flexibility of the control system allow for effective spraying across this broad spectrum of pipe sizes, ensuring that both narrow and wide pipes can be coated with precision and efficiency.
